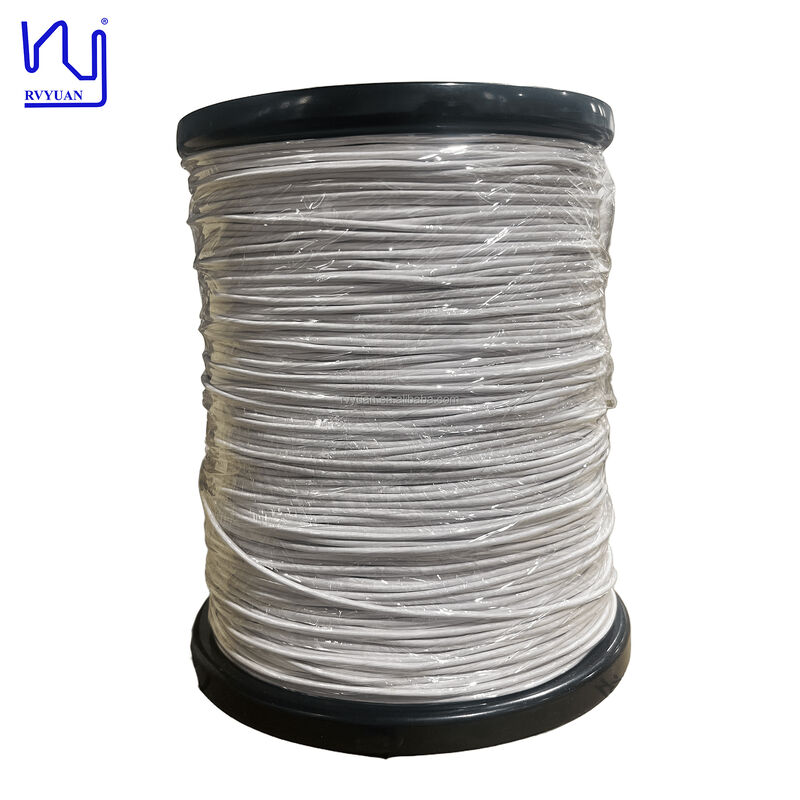

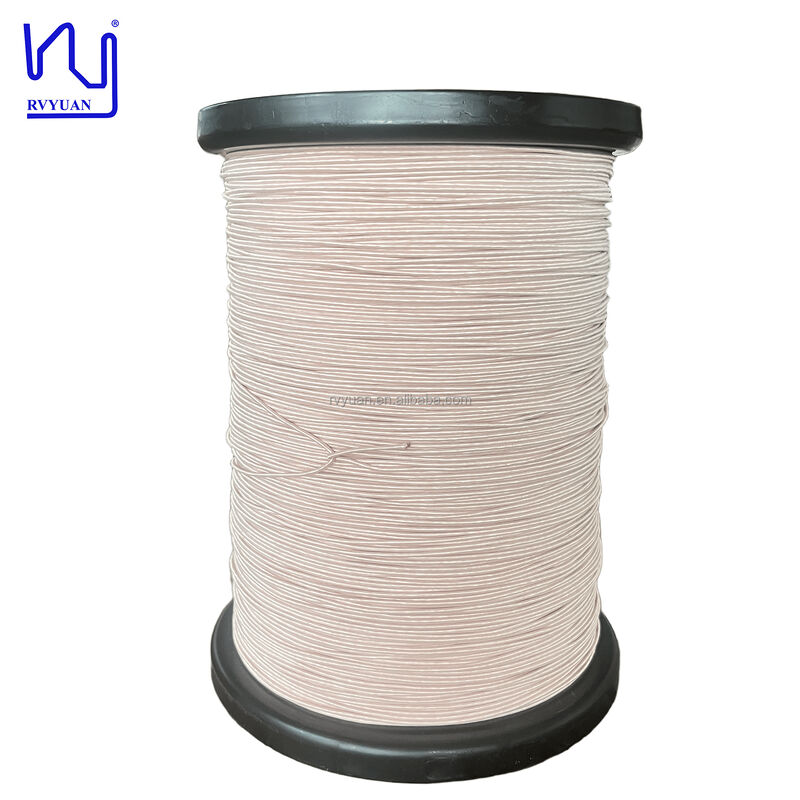

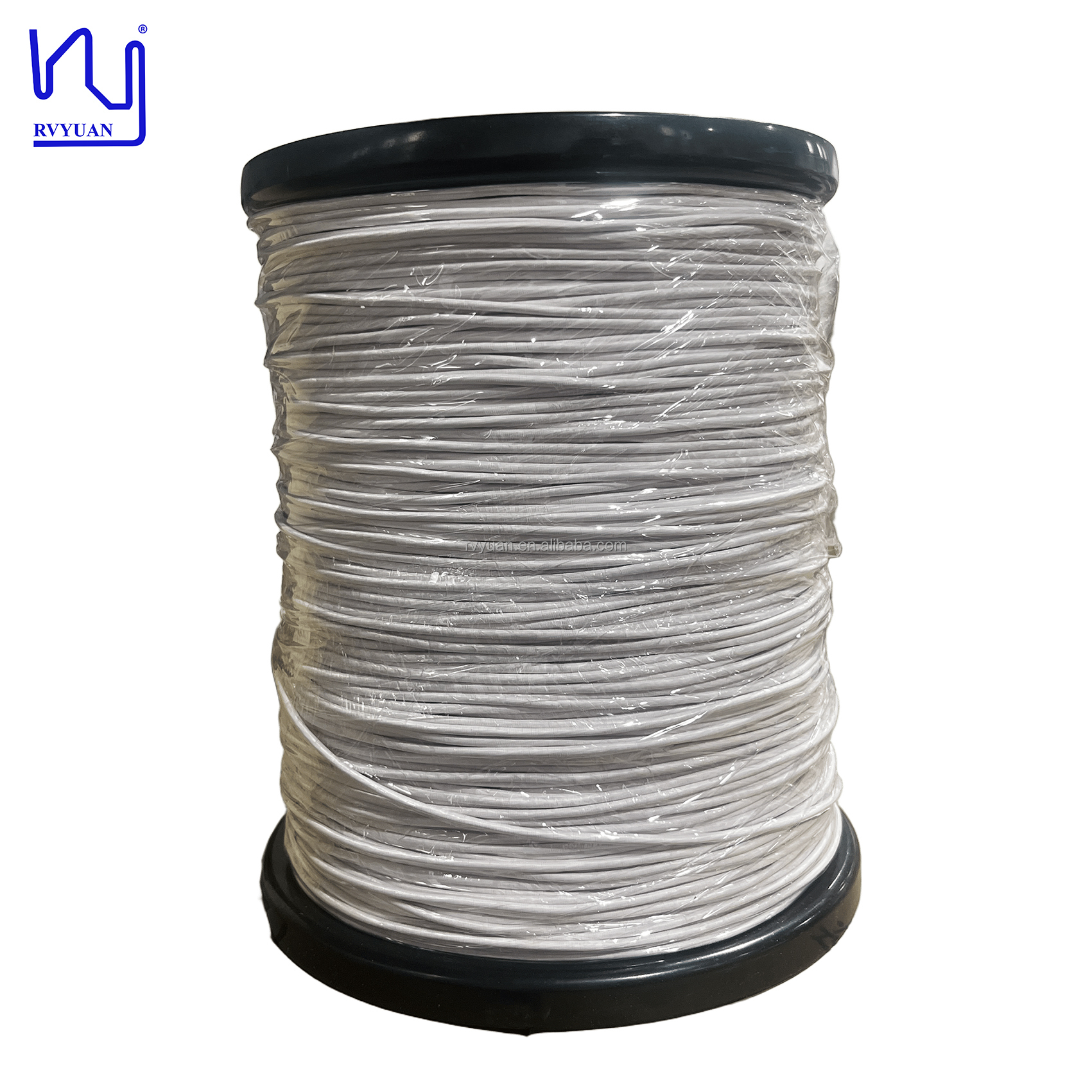

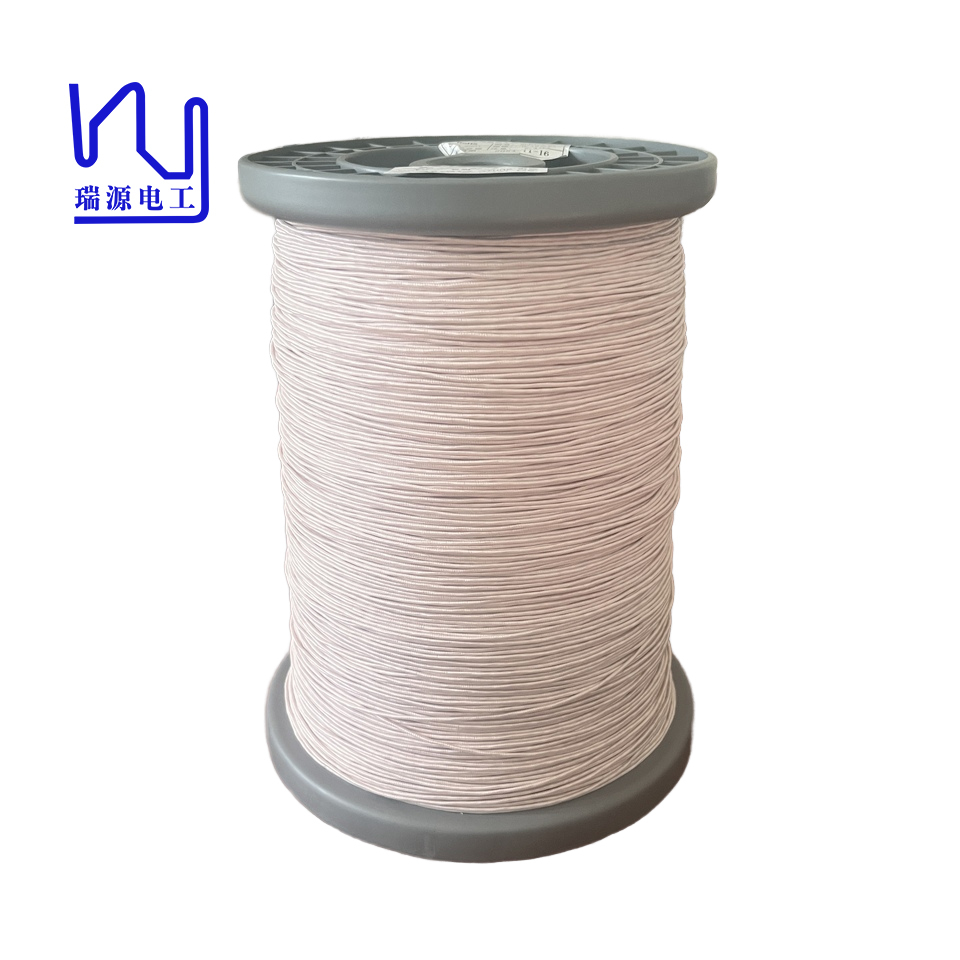

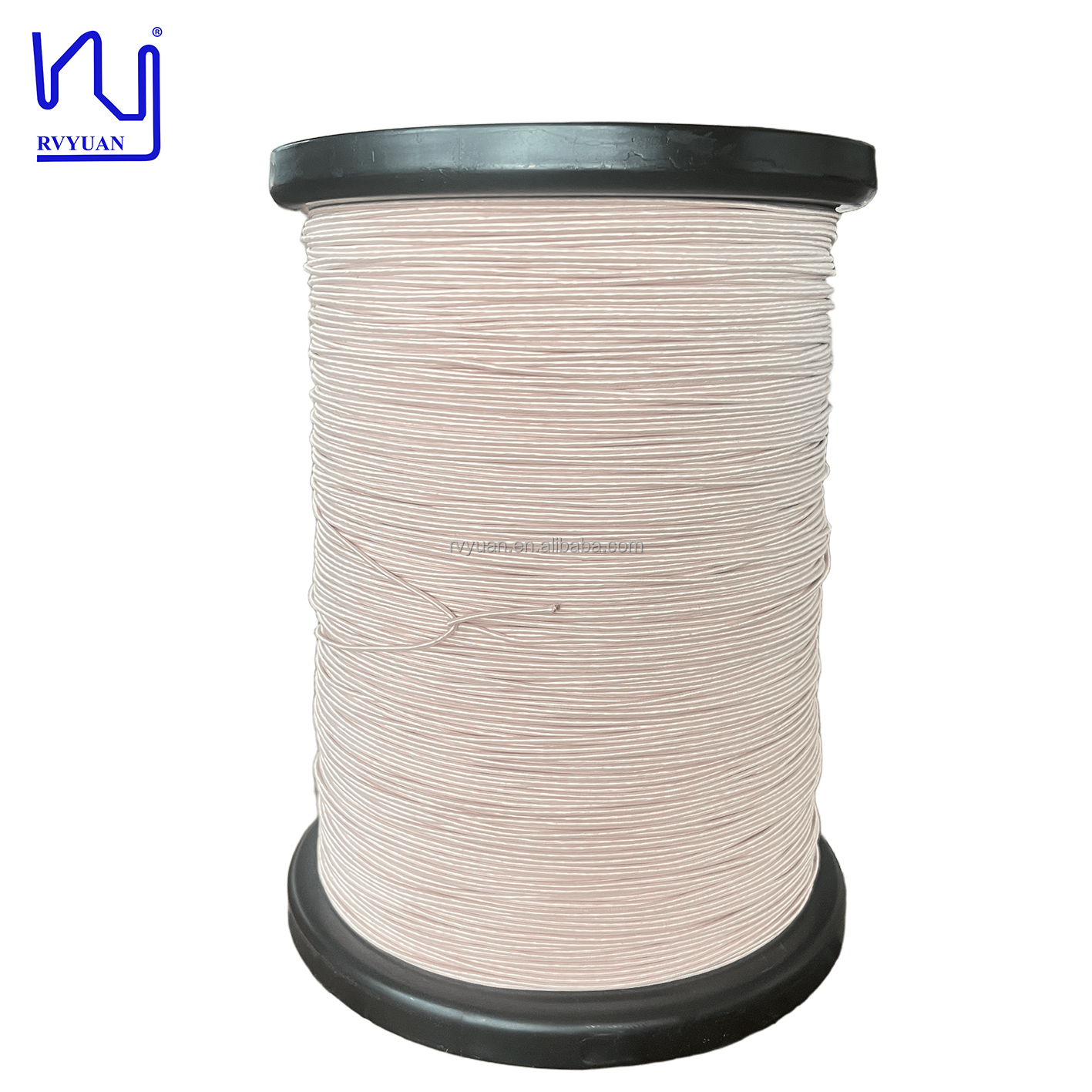

2USTC155 0.071mm X 250 Strands Nylon Serving Copper Litz Wire

2USTC155 0.071mm X 250 Strands Nylon Serving Copper Litz Wire Product Specifications Description Conductor diameter*Strand number 2UDTC-F 0.071*250 Single Wire Specifications Conductor diameter (mm)0.071 Conductor diameter tolerance (mm)±0.003 Minimal insulation thickness (mm)0.004 Maximal overall diameter (mm)0.084 Thermal Class155 Strand Composition Strand number50*5 Pitch (mm)29±5 Stranding directionS Insulation Layer CategoryNylon UL/ Material specs (mm*mm or D)300+300
