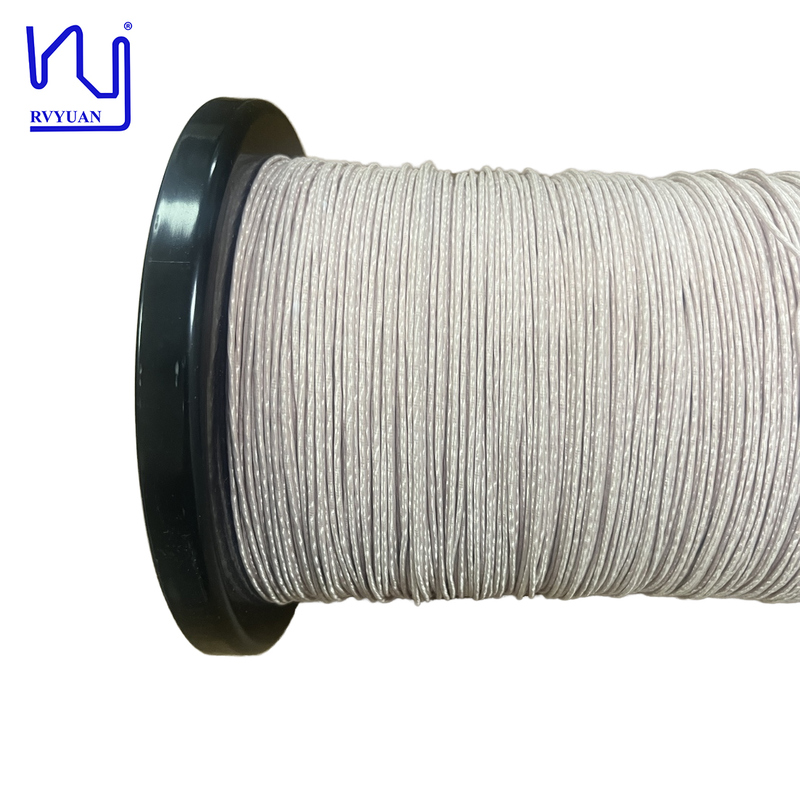

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: RVYUAN
সাক্ষ্যদান: ISO9001/ISO14001 /UL/SGS
মডেল নম্বার: ইউএসটিসি
ন্যূনতম চাহিদার পরিমাণ: 10 কেজি
মূল্য: negotiable
প্যাকেজিং বিবরণ: কার্টন সহ স্পুল
ডেলিভারি সময়: 2-15 ওয়ার্কিংয়ের দিন
পরিশোধের শর্ত: টি/ টি/ পেপাল
যোগানের ক্ষমতা: আপনার চাহিদা পূরণ করুন
বিস্তারিত তথ্য
ব্যাস: 0.2 মিমি তাপমাত্রা: 155
সাক্ষ্যদান: IEC/NEMA/JIS/RoHS/ISO কন্ডাক্টর: তামা
স্ট্র্যান্ডস: 40 ব্রেকডাউন ভোল্টেজ: ন্যূনতম 1600
কভার উপাদান: নাইলন পণ্যের নাম: ইউএসটিসি ক্লাস 155 0.2 মিমি*40 ইনসুলেটেড সিল্ক কভারড কপার লিটজ ওয়্যার 3500V
মূল শব্দ: ইউএসটিসি ক্লাস 155 0.2 মিমি*40 ইনসুলেটেড সিল্ক কভারড কপার লিটজ ওয়্যার 3500V
বিশেষভাবে তুলে ধরা:

0.2mm insulated silk litz wire

,

40 strand silk covered copper wire

,

3500V high voltage litz wire


পণ্যের বর্ণনা

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
This type of silk covered Litz wire has a wide range of applications, including transformer windings, voice coil wiring, and electric vehicle charging stations. We understand that every project is unique, so we offer customization services. You can specify your exact requirements for conductor specifications, number of strands, stranding method, resistance, and outer diameter. Our professional team is dedicated to helping you design silk-covered Litz wire that perfectly matches your system needs.
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V 0
Please send inquiries directly to request more information or quote!
