Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: RVYUAN
সাক্ষ্যদান: UL/ISO9001/ISO14001/RoHS/Reach
মডেল নম্বার: 0.24 মিমি
ন্যূনতম চাহিদার পরিমাণ: 1000 মিটার
মূল্য: negotiable
প্যাকেজিং বিবরণ: কার্টন
ডেলিভারি সময়: 7 দিন
পরিশোধের শর্ত: টি/টি/পেপাল
যোগানের ক্ষমতা: ১ টন/মাস
বিস্তারিত তথ্য
পণ্যের নাম: ট্রান্সফর্মারের জন্য কাস্টম ইটিএফই এক্সট্রুড লিটজ ওয়্যার 0.24 মিমিএক্স 7 স্ট্র্যান্ডস টিআইডাব্লু তাপীয় রেটিং: 155
একক তারের ব্যাস: 0.24 মিমি কন্ডাক্টর উপাদান: তামা
স্ট্র্যান্ড সংখ্যা: 7 ইনস্যুলেশন: ETFE
বিশেষভাবে তুলে ধরা:

ETFE insulated copper litz wire

,

0.24mm 7-strand litz wire

,

TIW stranded copper wire


পণ্যের বর্ণনা

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.
Characteristics Test Standard Test result
Min. insulation thickness Mm(min)0.11 0.120 0.127 0.120
Pitch 12±2 ok ok ok
Single wire Diameter 0.24±0.003MM 0.239 0.240 0.240
Overall dimension / 1.03 1.05 1.05
Conductor Resistance Max. 59.18Ω/KM 56.04 56.12 56.10
Breakdown voltage Min. 6KV(min) 15.2 14.4 14.8
Solder ability 400℃ 3Secs OK OK OK
Conclusion Qualified

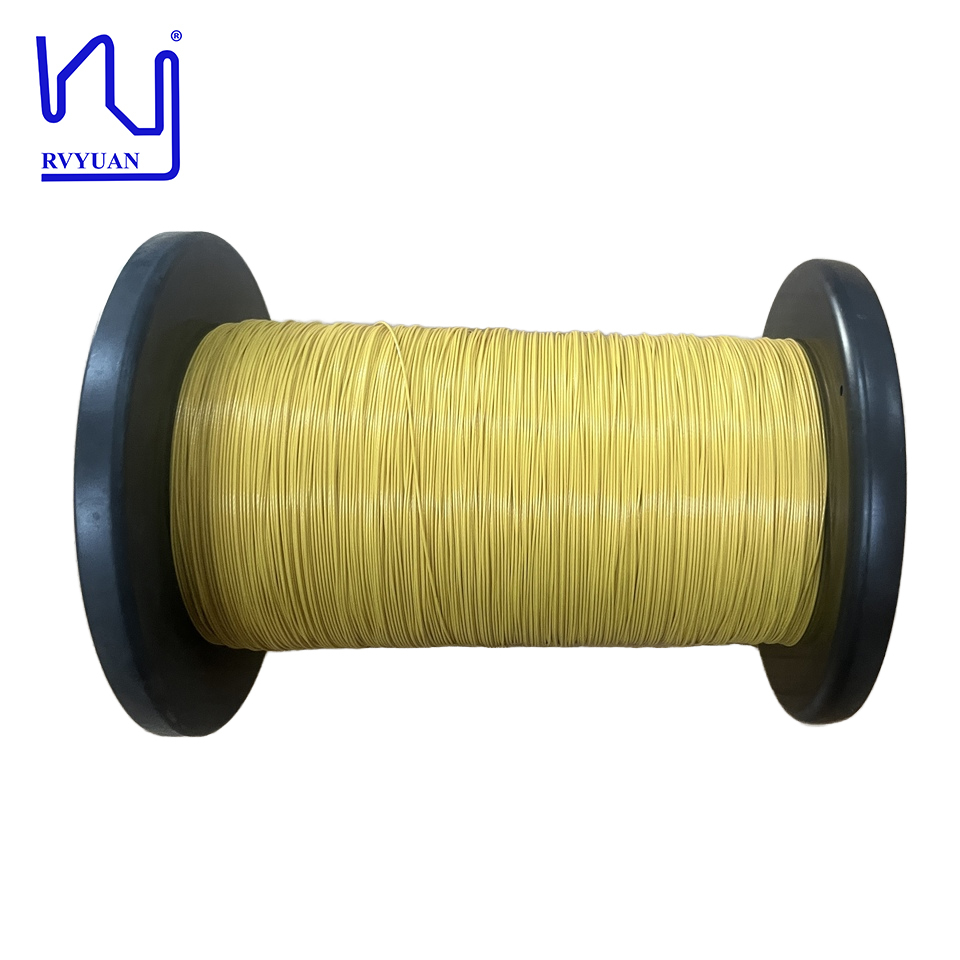

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire 0
We have a professional team to provide technical support. Custom specifications available upon request.
