0.014mm Watch Super Enamelled Copper Wire With High Thermal Grade 155 Insulation

বেসিক ইনফরমেশন
Place of Origin: China
পরিচিতিমুলক নাম: Ruiyuan
সাক্ষ্যদান: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.014mm
Minimum Order Quantity: 0.5kg
মূল্য: negotiable
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
বিস্তারিত তথ্য
Product name: Magnet Wire Diameter: 0.014mm
Material: Copper Insulation: UEW
Thermal grade: 155 Breakdown voltage: 243V
বিশেষভাবে তুলে ধরা:

Watch Enamelled Copper Wire

,

0.014mm enamelled copper wire

,

Super enamelled copper wire


পণ্যের বর্ণনা

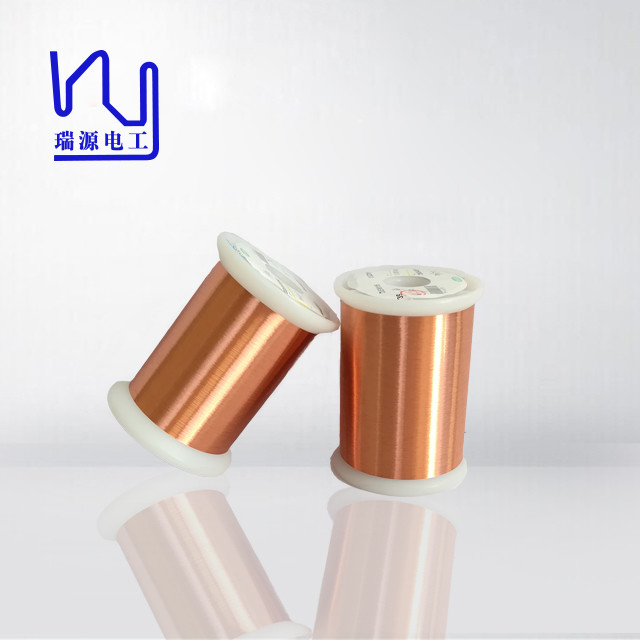

0.014mm Watch Use Super Enamelled Copper Wire



Our ultra-fine enameled copper wire (also known as magnet wire) is engineered to provide superior insulation without the risk of pinholes. This feature is critical for applications where electrical integrity is critical. The absence of pinholes ensures that the wire maintains its insulation properties, preventing short circuits and improving the overall safety of electronic devices. With temperature options of 155 and 180 degrees Celsius, our ultra-fine wire is ideal for applications that require reliable performance under varying thermal conditions.



3UEW155 0.014mm

Test item

Standard value

Reality value

Conductor dimensions(mm)

0.014mm±0.001

0.014

0.014

0.014

Overall dimensions(mm)

Max.0.017mm

0.0168

0.0168

0.0168

Insulation film thickness(mm)

Min.0.002

0.0028

0.0028

0.0028

Continuity of covering(50V/30M)PCS

Max.60

Max.0

Breakdown voltage(v)

Min.100

Min.243

Resistance to softening(cut through)℃

Continue 2 times pass

200℃/Good

Solder test(390℃±5s

Max.2

Max.1.5

Electrical resistanceΩ/m

98-115

108.6

108.6

108.6

Elongation%

Min.3

10

10

10







0.014mm Watch Super Enamelled Copper Wire With High Thermal Grade 155 Insulation 0
